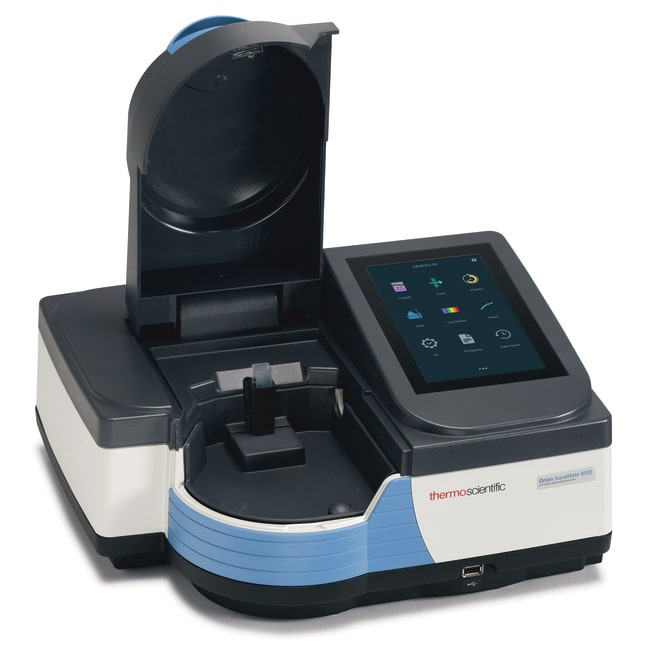

Type8100 UV-Vis Spectrophotometer
KeypadGlove- friendly touchscreen
Display7 in. High Definition Color Touchscreen, Fixed, 800 x 1280 pixels
IncludesTest Tube Holder for vials and test tube from 12 to 25 mm OD, 10 mm square single-cell holder, AquaMate Water Analysis Methods Software, Snap-on Printer, Dust Cover, External Power Supply, North America power cable (NEMA 5-15), European power cable (CEE 7/7), UK Power cable (BS 1362).
Warranty1 Year
Lamp Life>5 years typical
Scan SpeedSlow, medium and fast - up to 1600 nm/min.
ConnectionsSingle USB-AExport data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, availablePrint via USB, Ethernet or Wi-Fi USB adaptor available
Detector TypeDual Silicon Photodiodes
Optical DesignDouble Beam
Weight (Metric)7.5 kg
Printer IncludedSnap-on printer included
Wavelength Range190 to 1100 nm
Baseline Flatness±0.002 A
Photometric Range-2A to +3.5A
Spectral Bandwidth2 nm
Wavelength Accuracy±0.5 nm
Photometric Accuracy±0.002 A at 0.5 A, ±0.004 A at 1.0 A, ±0.008 A at 2.0 A
Dimensions (L x W x H)35.5 x 38.5 x 19.5 cm
Electrical RequirementsExternal AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz
Wavelength Repeatability< ±0.2 nm
Certifications/ComplianceCE / TUV
For Use With (Application)Water and Waste Water Analysis
